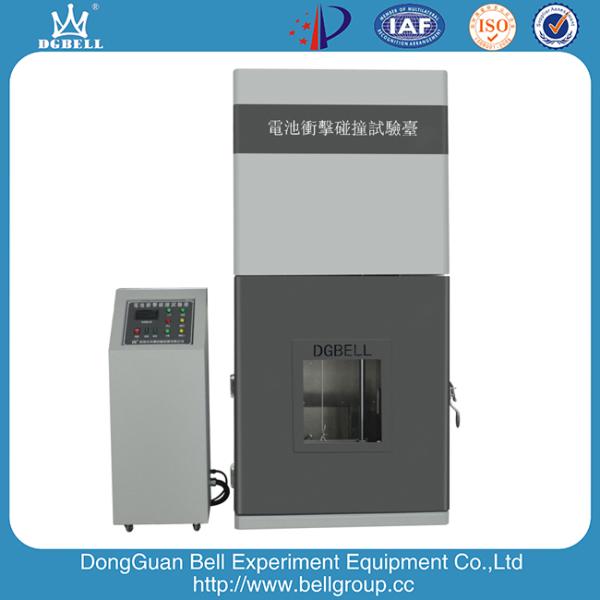

Battery Gravity Impact Tester

（Patent No.：ZL 2009 2 0110344.2）

1.Battery Gravity Impact Tester Application

This battery impact tester functions to test the safety performance of battery through different weights from different heights to impact different stressed area. The battery shall have no flame or explosion after series of tests by this battery impact tester.

This equipment is a popular battery tester to battery manufacturers.

2. Battery Gravity Impact Tester Features

1.Dual rail structure that protects the tester if sudden power supply cut-off but the impact weight won’t drop;

2.Impact weights can be changed over, mounting, dismantling in an easy way that provides an excellent solution to treat the error due to secondary impacts and improve the test accuracy.

3.The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.

4.Lighting system is designed to observe the internal testing process;

5.Height can be display in a digital way with controllable height from 25-1000mm.

6. Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.

7.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.

3.Battery Gravity Impact Tester Standard Compliance

UL1642 Lithium Batteries

UL2054-2005 Household and Commercial Batteries

UN38.3 Lithium ion battery safety testing

GB/T 18287-2000 General specification of lithium-ion battery for cellular phone

SJ/T 11169-1998 Standard for lithium batteries

YD 1268- 2003 The safety specification and test method for lithium batteries and charger

SJ/T 11170-1998 Standard for household and commercial batteries

3. Battery Gravity Impact Tester Technical Parameters

DongGuan Bell Experimental Equipment Co.,Ltd allocates itsself in DongCheng District Dong Guan City Guagndong Province, a high-tech enterpise specilized in environmental equipment R&D, manufacturer and covers an areas of more than 10000 square meters with its registered capital up to 500,00,000 RMB and annual throughtout up to more than 0.1 billion RMB. Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification.

To meet manufacturing demand, Bell was introduced with the facilities such as advanced CNC shearing machine, bending machine, punching machine, laser welding machine etc. meanwhile, Bell recruited a large number of talents in R&D, manufacturing, most of them are capable to design, manufacture and install large size testing machine.

Bell utilized its independent R&D competence in mechanical and software engineering to product testing machines that wide applied in Scientic Institute, aerospace, military, electronic, electric, toy, paper works, hareware, battery, communications and assure the machine to meet the relevant standards regarding to environmental test and mechanical test such as GB, GJB,IEC, ISO, IEC, MIL,DIN, CE etc.

Business Line

•

  A. Environment Reliability Testing Equipment:
  High low temperature humidity chamber, thermal shock chamber, large size walk in constant temperature humidity room, fast temperature change rate chamber, high temperature aging test chamber (Max. Temperature 500℃), UV aging test chamber, Xenon lamp aging test chamber,Vacuum Chamber,Temperature/humidity,vibration combined test chamber, rain spray chamber, salt spray test chamber, sand and dust test chamber etc.
  B. Automotive Inspection Equipment :
  Automotive Rain Spray IPX1~IPX8 testing room, sand and dust test room, salt spray test room, VOC formaldehyde content test laboratory, high low temperature humidity test chamber, automobile emissions test laboratory, wind tunnel laboratory etc .non-standard equipment .
  C. Package Inspection Equipment:
  Carton compression Test machine, ring crush strength testing machine, drop testing machine, transport simulate vibration test table, Ink decolonization test machine, broken strength test machine.
  D. Battery Safety Test Machine:
  Battery crush tester, battery penetration tester, battery impact tester, battery short-circuit tester, thermal shock test chamber, high altitude low pressure test chamber, battery drop tester, integral battery crush penetration tester, integral battery crush penetration impact tester, battery internal short-circuit tester,  integral crush-internal short circuit tester,  horizontal battery crush tester, battery drop tester,  horizontal battery penetration tester.
